Brake Cooling suitable for Hyundai I30N - complete set

For many vehicles, brake cooling is recommended even under moderate loads, including off the race track.
This not only improves braking performance, but can also significantly reduce wear on the friction surfaces.
We use the direction of the airflow to the centre of the brake disc to utilise the turbine effect to cool the disc from the inside and at a certain angle to prevent waste and make the most efficient use of the available air volume.
Thanks to the lightweight construction in combination with powdered aluminium, the component is sufficiently strong and lightweight at the same time.

The kit allows the OEM channels to be retained because we have developed inlet funnels for the trapezoidal arm. These are simply screwed under the trapezoidal arm and have an opening through the trapezoidal arm with a hose connection to connect the air supply surface to the anchor plate using a short air hose.

The advantages are obvious: a shorter hose can be used to achieve fewer flow losses. This also makes the system more resistant to wear and full steering wheel rotation no longer causes hose damage. The last advantage is easy installation.

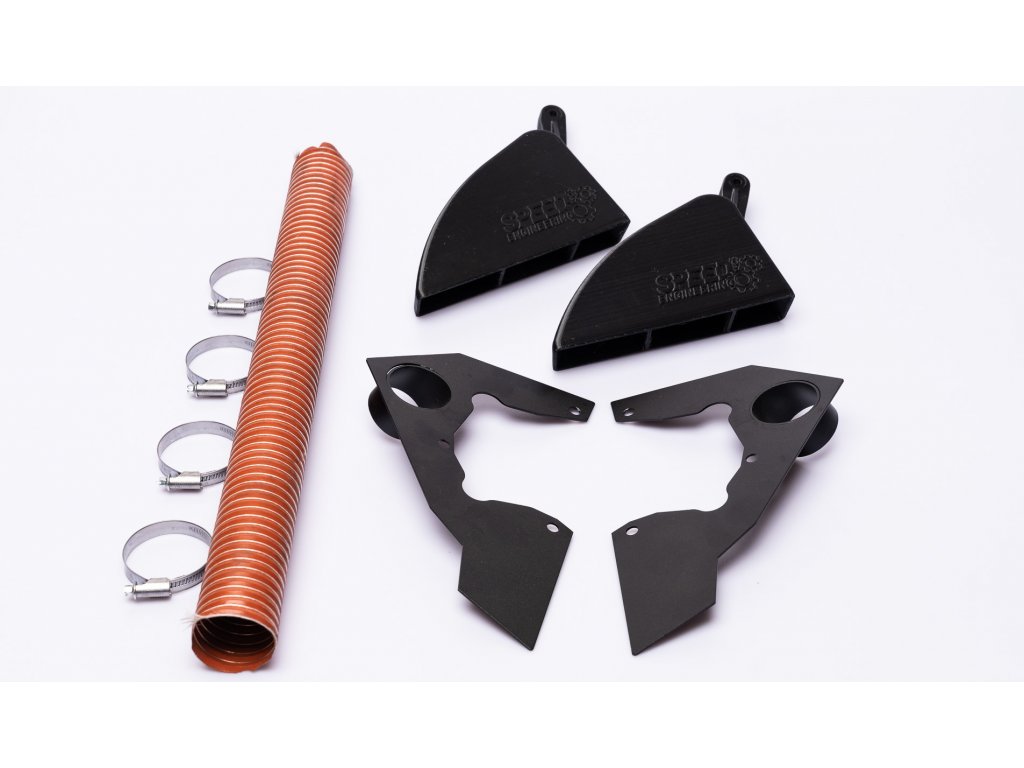

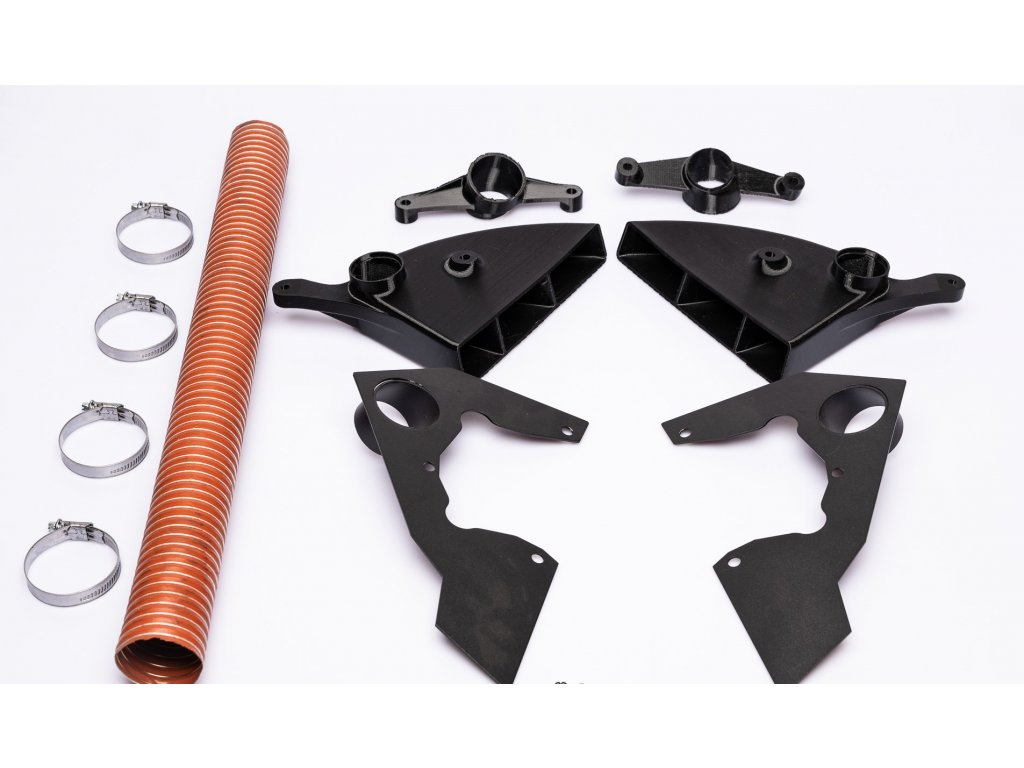

Package contents:

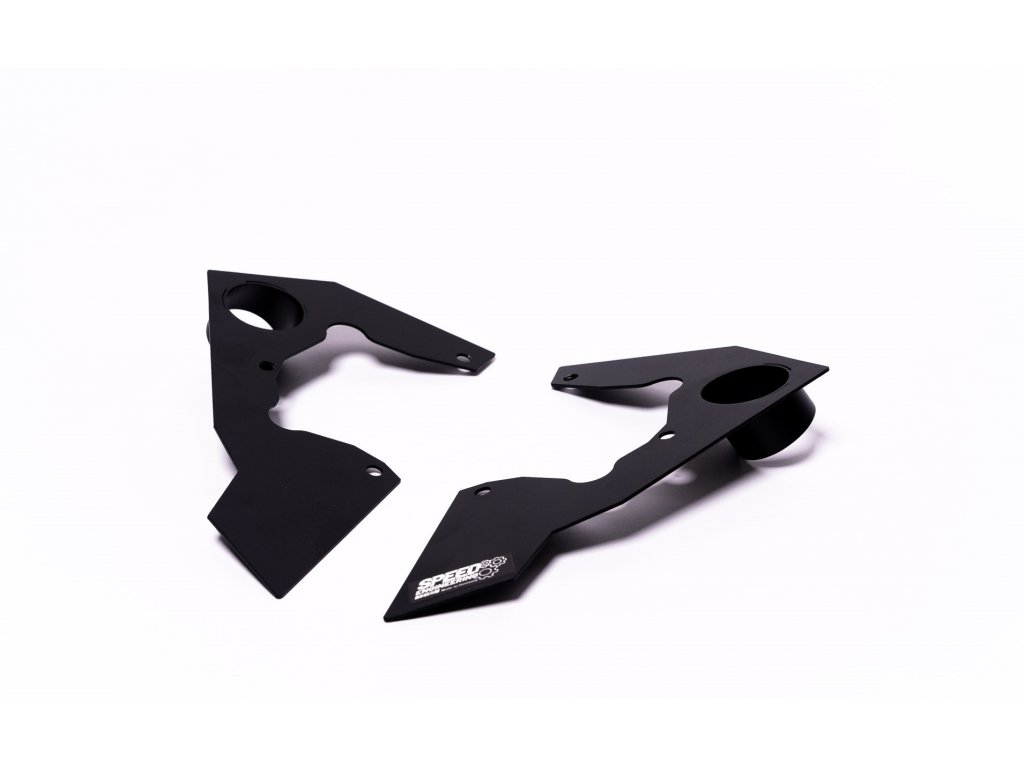

1x anchor plate left
1x anchor plate right
1x inlet duct left
1x inlet duct right
3x air hose = 3 meters
4x hose clamp

* Part designed for motorsport races without road approval (E).
